TECHNICAL SPECIFICATIONS

Ø  Therapy mode: 4 P , 2 P , 4 PV ,TENS

Ø  Multi vector scan : 2PL Linear  45 degree ,4 PL Linear 90 degree, 4 PT  Linear 90 degree, time duration , 4PNL Non  linear 90 degree

Ø  Spectrum pattern :  Triangular , Trapezoidal ,Square

Ø  Treatment Duration:-           1 - 30 min in 1 min increments

Alarms  Audio Alarm at the end of Treatment with auto cut off

Ø  Patient safety should be available with no output while intensity is high.

Ø  Carrier FRQ : 2 KHZ & 4 KHZ,

Ø  Base : 1- 150 HZ

Ø  Sweep :1 -100 hz

Ø  Digital display  for out put amplitude Both channel

Ø  Amplitude balance controlled :-  To equilise 2 channel current Out put

Ø  Out put current : 0 –250 ma sine wave  continusalable variable

Ø  Input Power:- 220  -240 V aprox 50/60 Hz

Ø  Weight :-5 kg aprox

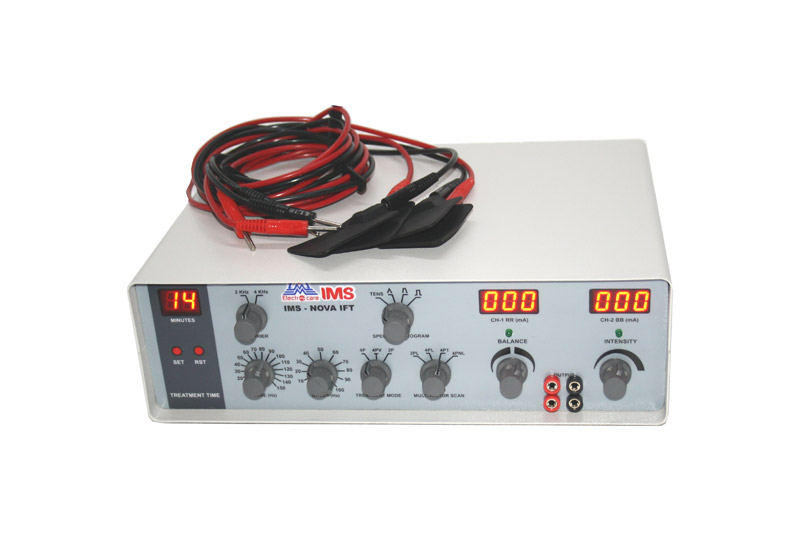

Ø  Brand : Ims Analog IFT

STANDARD ACCESSORIES

Ø  Main Unit : 01 No.

Ø  Ift carbon electrode : 2 pair large and 2 pair small

Ø  Ift  out put lead :  2 red wire and 2 black wire

Ø  Fixing elastic belts: 02 set. ( each set three different size of belt  small, medium and large )

Ø  Power cable: 01 No.

Ø  Carry bag : 1 No

Ø  Jel bottale : 1No
