TECHNICAL SPECIFICATIONS

Ø  Therapy mode : Cont ,Burst, , PWM  and Sweep

Ø  Four channels , isolated between channels

Ø  Amplitude current : 0-100mA peak to peak into 500 ohm load each Channel

Ø  Frq : Adjustable 2,20,40, 80,130

Ø  Treatment Duration:-           1 - 60 min in 1 min increments

Alarms  Audio Alarm at the end of Treatment with auto cut off

Ø  Patient safety should be available with no output while intensity is high by switching on the machine.

Ø  Display : seven segment digital display for timer

Ø  LED display  eachchannel for pulse mode and pulse frequency

Ø  Input Power:- 220  -240 V approx  50/60 Hz

Ø  Weight :- 2.5 kg

Ø  Brand : physiones

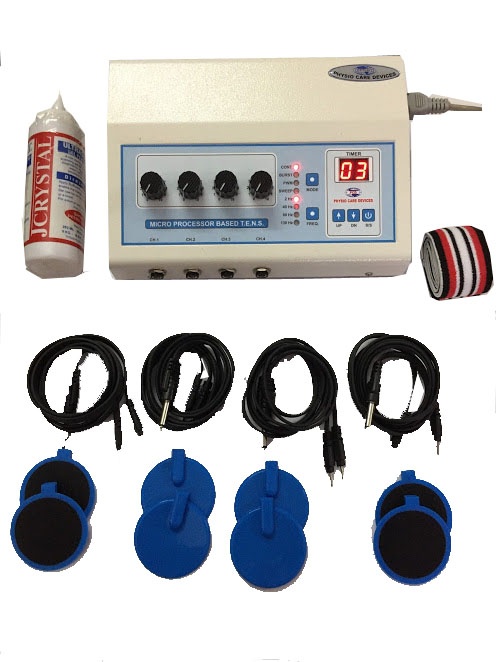

STANDARD ACCESSORIES

Ø  Main Unit : 01 No.

Ø  Tens carbon electrode : 8 roun electrode 4 cm dia

Ø  Tens out put lead : 4 no.

Ø  Fixing elastic belts: 02 set. ( each set three different size of belt  small, medium and large )

Ø  Instruction Manual :01 No

Ø  Power cable provided for different countries: 01 No.

Ø  Carry bag : 1 No

Ø  Jel bottale : 1No
