TECHNICAL SPECIFICATIONS

Ø  Therapy mode : Continuous  & Pulsed

Ø  Continuous Mode Output :-    2.5 w/cm2 maximum

Ø  Pulsed Mode Output :-          3.5 w/cm2 maximum

Ø  Input Power:-  110 -240 V ~; 50/60 Hz

Ø  Output Frequency:-     1  MHz ± 2%

Ø  Pulse ratio :-    1:2, 1:4, 1:7, 1:10 & 1:16

Ø  Pulse frequency : 1Hz, 10Hz, 50 Hz & 100 Hz

Ø  Treatment Duration:- 1 - 30 min in 1 min increments for manual mode

Ø  Alarms: Audio Alarm at the end of

Treatment with auto cut off.

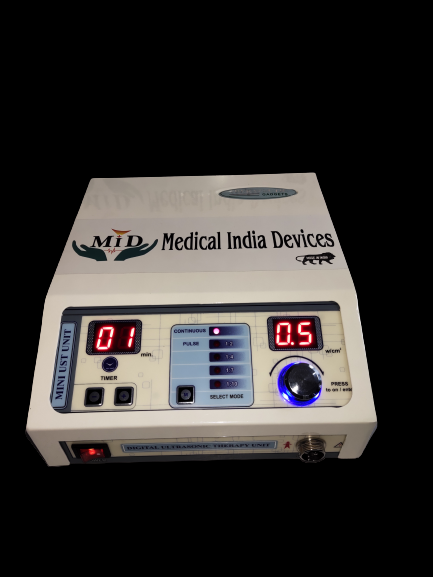

Ø  Display : seven segment digital display

Ø  Touch-free capsence keys (encoder based )

Ø  Microcontroller based

Ø  Frequency  tuning for ift coil

Ø  Power Fuse :- 2 Amp

Ø  Brand : Dynosound

STANDARD ACCESSORIES

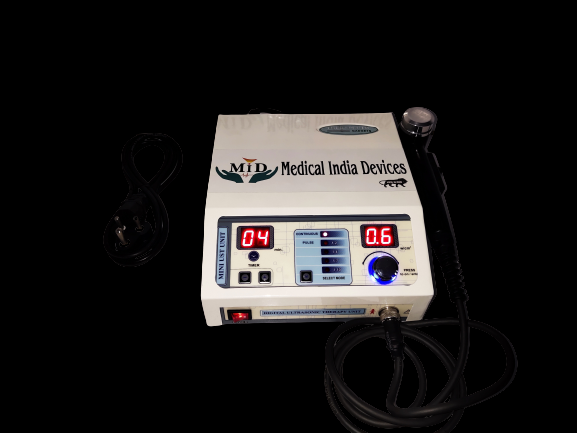

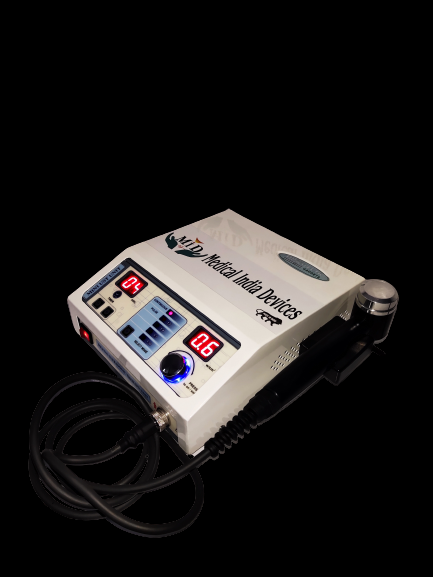

Ø  Main Unit : 01 No.

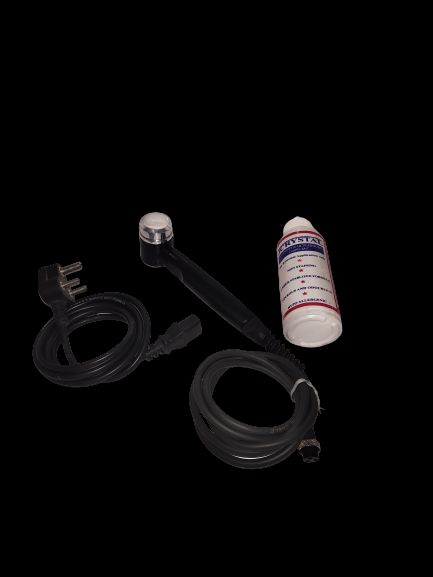

Ø  Ultrasound Applicator :01 No 1 Mhz

Ø  Power cable provided for different countries: 01 No.

Ø  Instruction Manual :01 No

Ø  Jel bottle : 1 No

Ø  Carry bag : 1 No
